Magnimage MIG-F4 Series

Save 12%

Sale price$899.00 USD Regular price$1,020.00 USD

Shipping calculated at checkout

In stock

Due to a few constraints, we are not able to showcase the pricing of some products, for more information kindly write us at

or WhatsApp us - Happy to help!

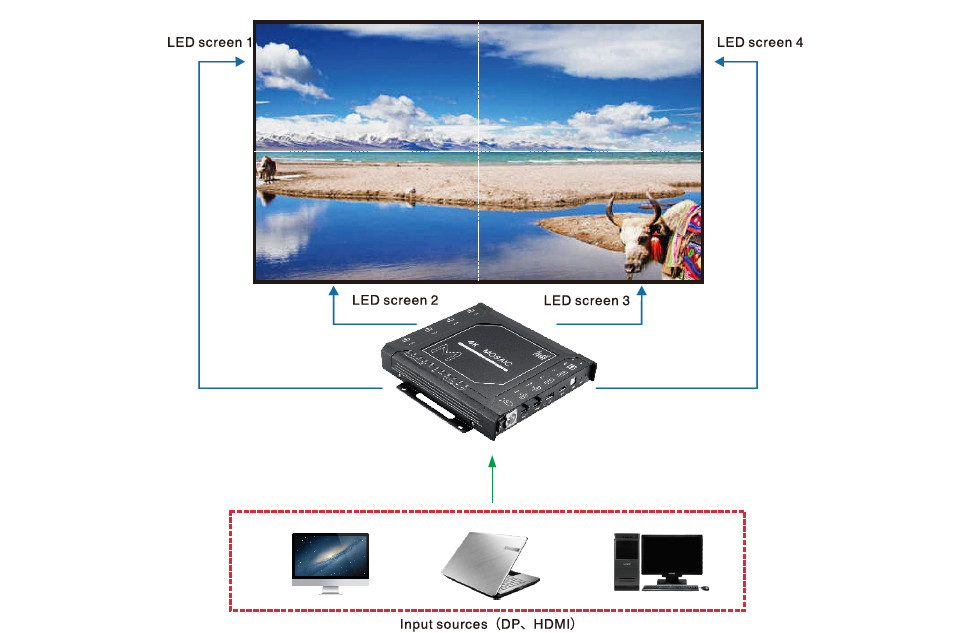

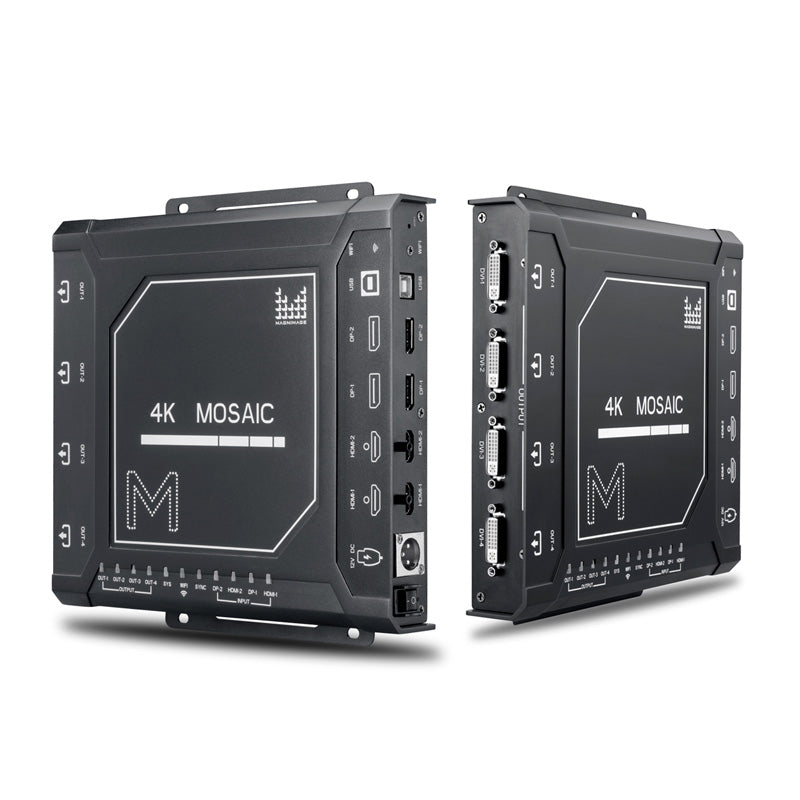

Magnimage MIG-F4 is a new video box for quad outputs mosaic application. With DP and HDMI inputs, it supports up to 4K*2K@60 Hz 4:4:4 or 8K*1K@60 Hz format source. Its smart control and auto-backup management is a great solution for different big screen project.

 Technical Specifications:

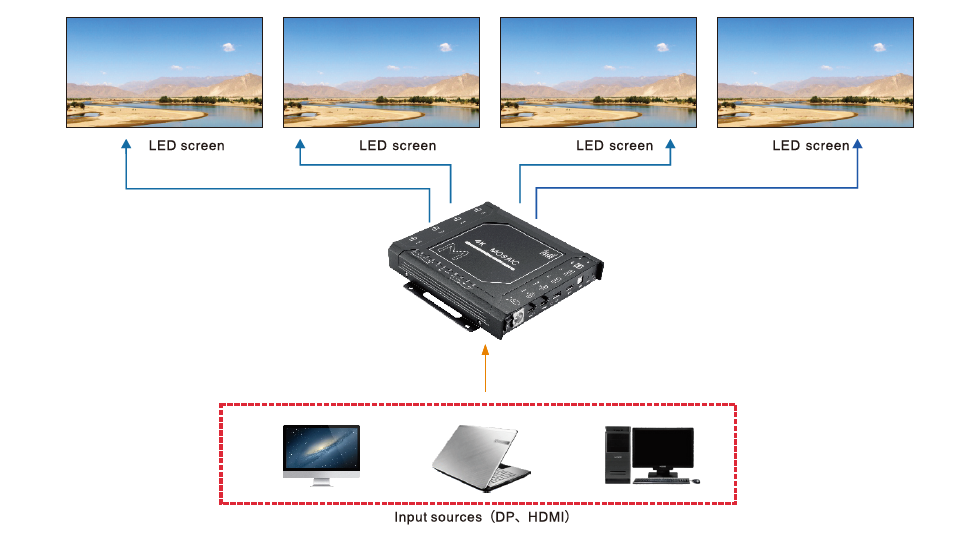

  • Quad outputs mosaic
  • Support 4K*2K/60 Hz 4:4:4 input
  • 2 DP & 2 HDMI inputs

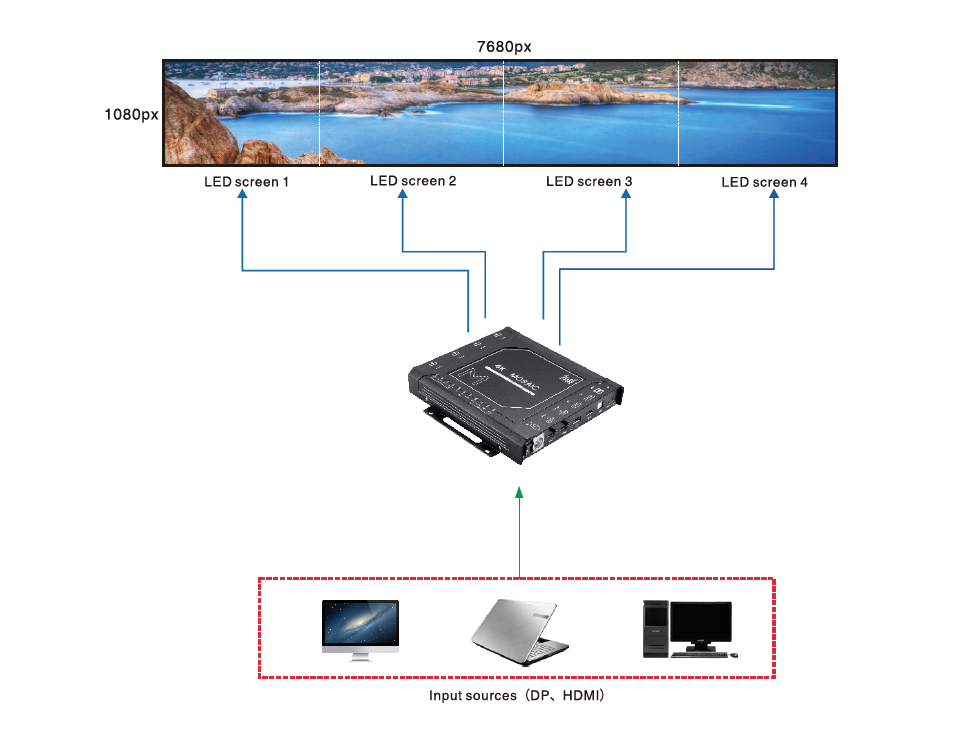

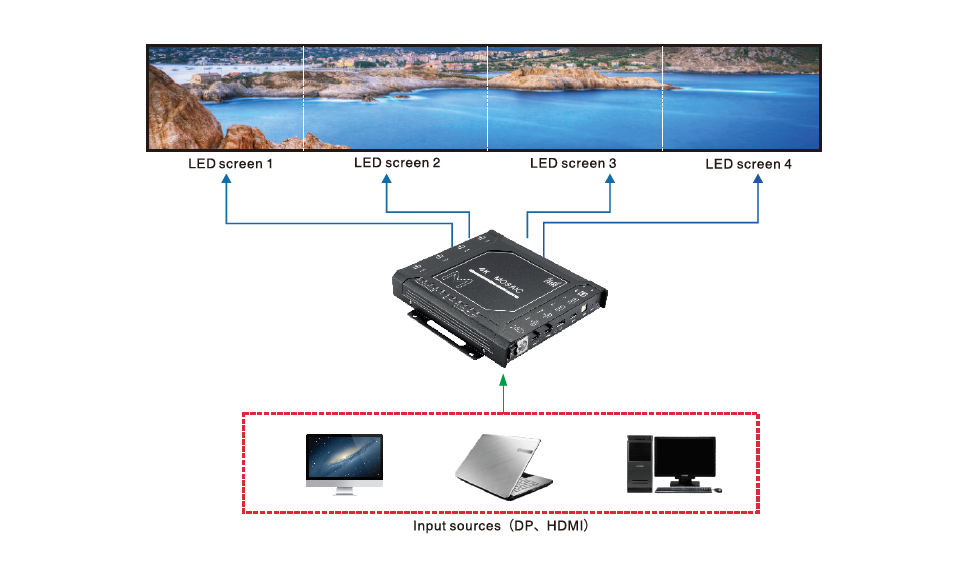

  • Support 8K x1K@60Hz input
  • EDID management
  • 4 DVI or 4 HDMI outputs Customized output resolution
  • Up to 9-million-pixel resolution processing capacity
  • Input signal
  • BackupMultiplecascademosaic
  • Save/load preset
  • Image crop, layer zoom
  • Edge blending

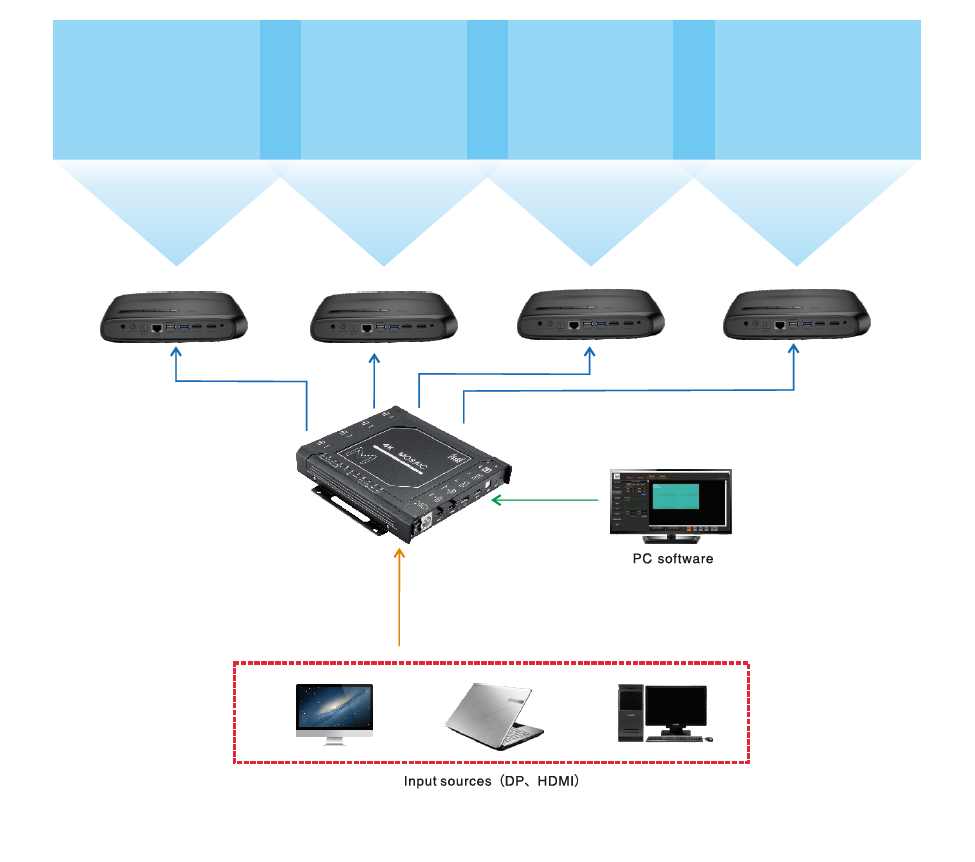

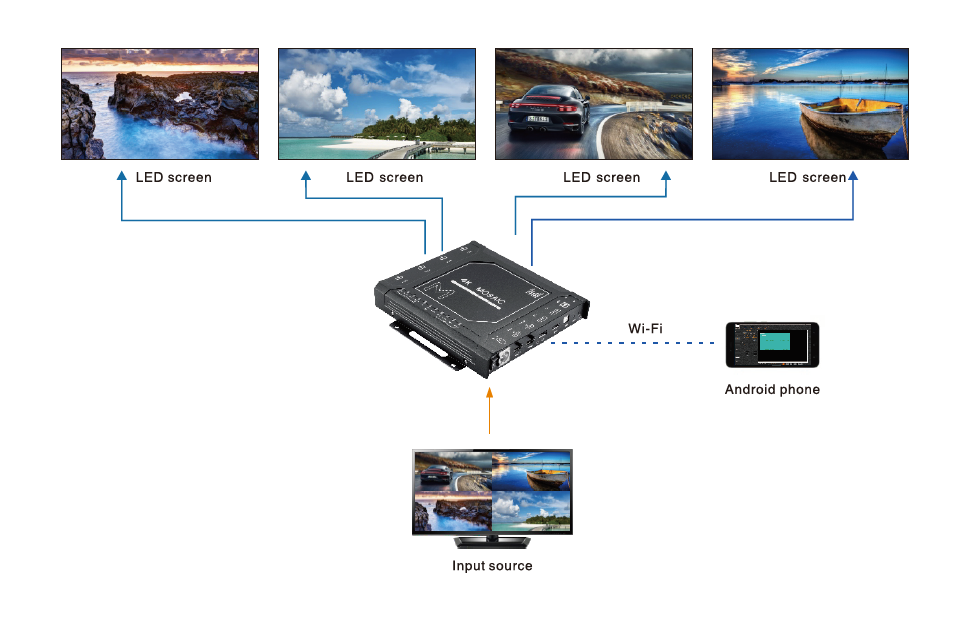

  • Controlled by PC software or Android APP
  • Wi-Fi hot spot

Download the technical specification sheet here - LINK
