Description

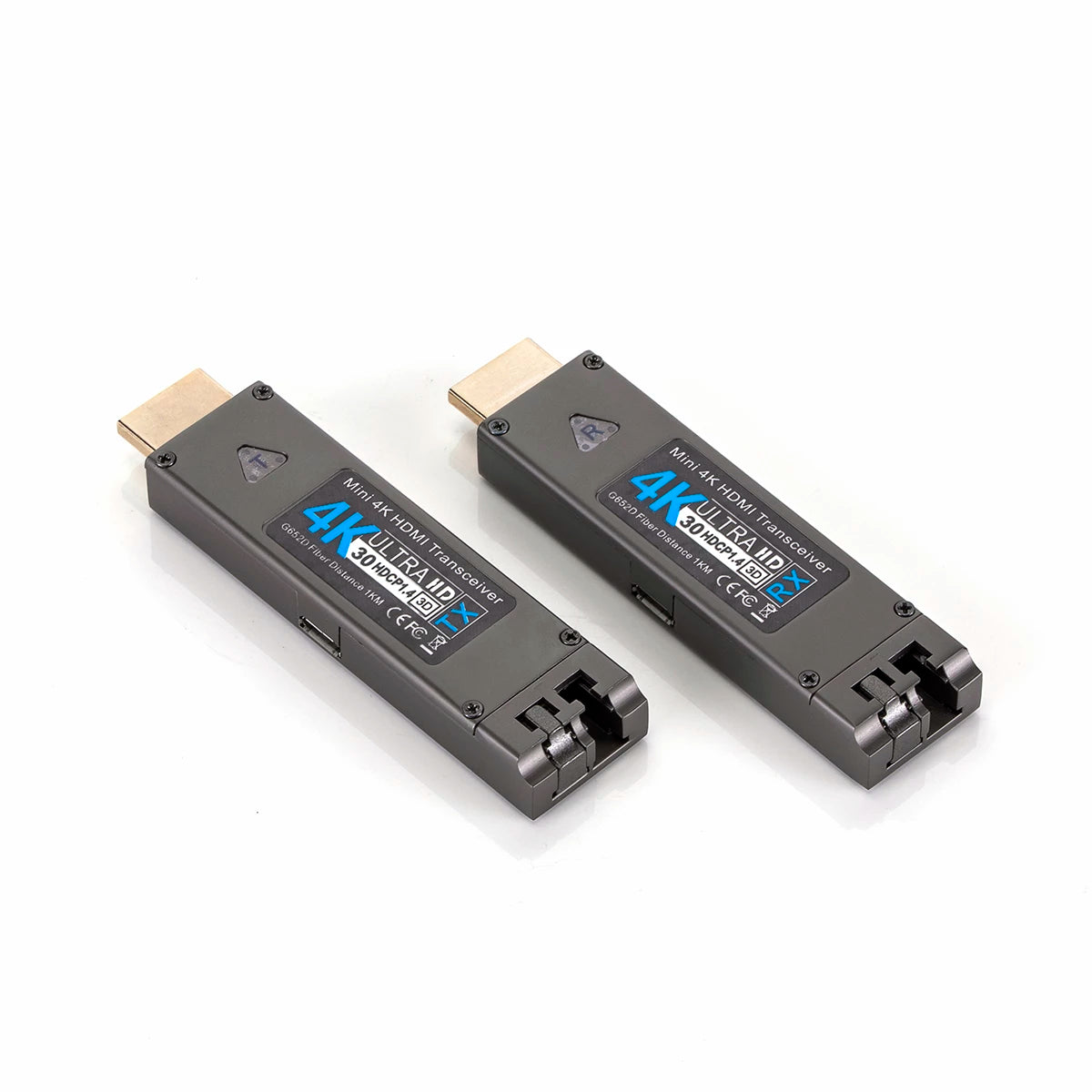

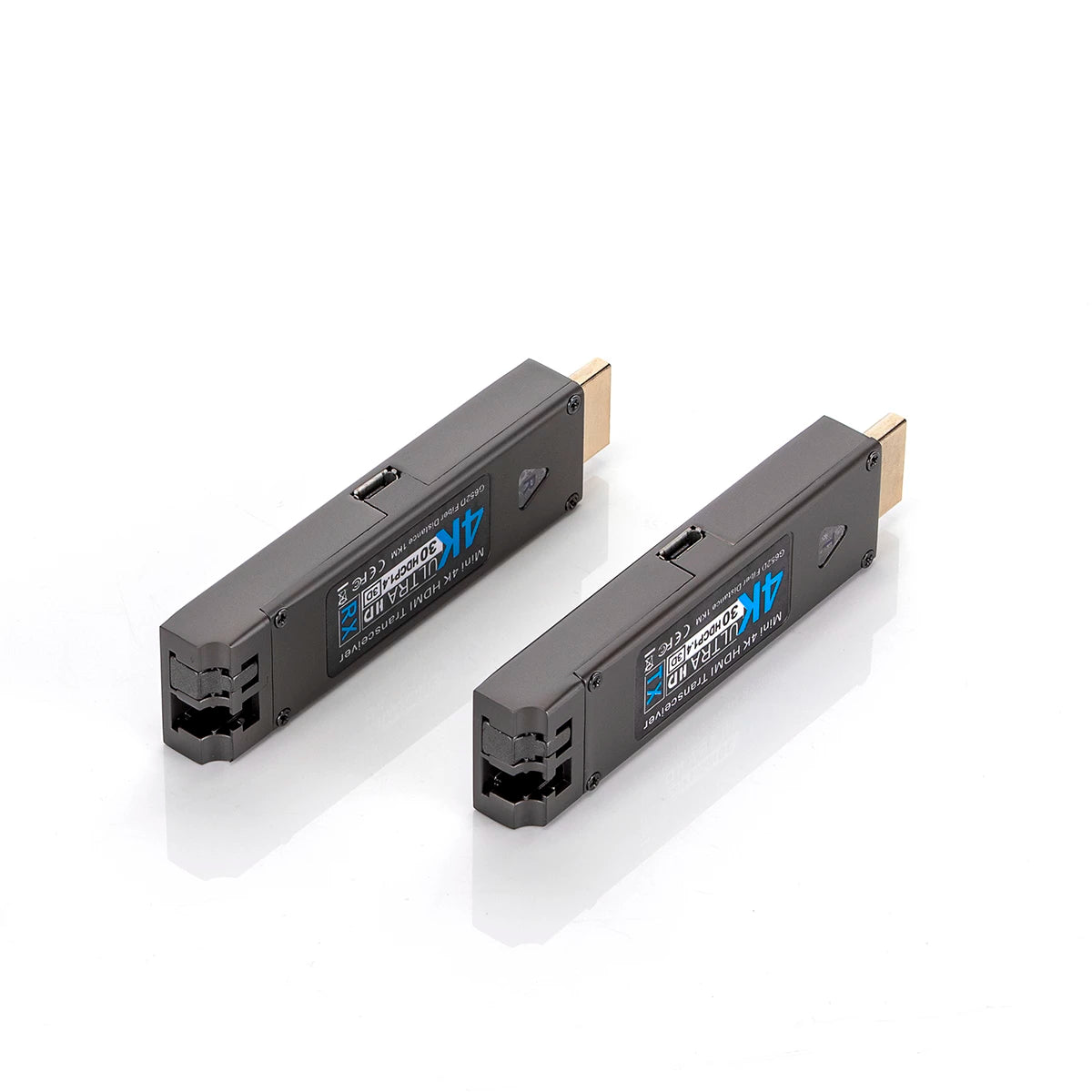

Mini 4K HDMI Fiber Converter is developed by our company itself , with independent intellectual property rights . Absorbed the advantages of similiar products at home and abroad ,combined with the actual demand of the market ,through one core/two core optical fiber transmission of 4K30Hz HDMI video signal ,to achieve no delay , no compression ,high-quality signal extension of 1km. Mini HDMI1.4 optical converter adopts the integrated video processing and photelectric conversion design ,high integration degree, small volume, its optical devices and core circuits and both improted components ,perfomance stability ,suitable for different working environments . The Mini HDMI1.4 fiber converter meets the international standard HDCP protocol 1.4, automatically recognizes the EDID, has the power-off EDID memory storage function ,and is downward compatible with version1.3/1.2 . Mini HDMI fiber converter power consumption is less than 1.5W, using mico-USB port power supply , support charge bank mobile power supply , strong flexibility in use.
Technical Specifications :
- Maximum support 4096*2160@30Hz and downward compatible
- Support standard HDM11.4 HDCP1.4
- Support DDC CEC HPD signal
- Support RGB&YCBCR4:4:4 YUV4:4:4 ,4:2:2 ,4:2:0
- EDID transparent transmission
- Support Single /Dual Fiber single mode transmission 1km
- Delay < 2 ms
- Support for hot plug
- Support power-off EDID memory storage function
- Support power
