Description

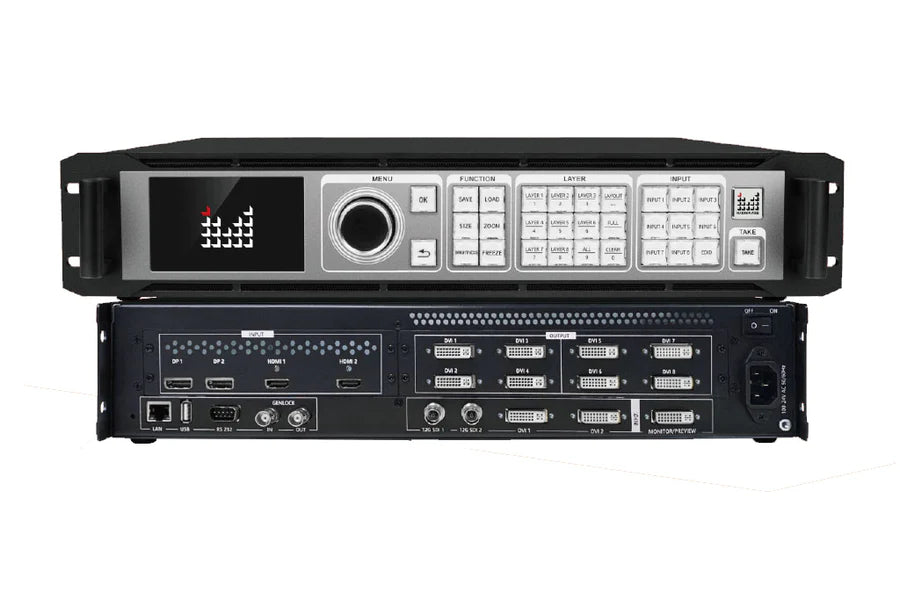

MIG-EC40 Series product is LED video processor developed for display system, using industry’s top image processing chip,24 bit digital processing, and 4K/60Hz 4：4：4 image processing technology. These makes image more clearer and colorful, builtin
4K and 2K matrix can support fade switch between multiple 4K and 2K inputs.
Advanced interfacing motion image adaptive processing technology, eliminate video image motion trailing and jagged problem, makes the output more clear and delicate. Rich video interface which support 8 UHD video input interface including DP1.2, HDMI2.0, 12G SDI and DVI.
MIG-EC40 is equipped with one touch screen for quick menu browsing and parameter adjustment, Knobs and buttons can accurately adjust various parameter of layers. It’s very popular for rental events for the small size, powerful function and
convenient use.
Technical Specifications:
- Switcher Mode: 4 Program output, support 4 layers, layer size and position freely change
- Moasaic Mode: 8 Output, each output support 4K1K@60Hz, max mosaic to 16K*2K@60Hz Support 4K*2K/60H 4:4:4 input
- Support HDCP1.4&2.2
- 1 Multi-window preview, preview input signal, real-time monitoring output, custom layout
- 8 Mixed matrix input, multiple 2K/4K input
- Background picture capture
- Input EDID management
- Image Crop, Layer Zoom
- Support external synchronization, Multi-cascade mosaic
- Touch screen control
- 20 presets save and Load
- Hot backup
