Description
Colorlight S2 LED Display Sending Card Specification, download at to see detail parameters and more information about C&Light S2 LED sign control system for LED display.

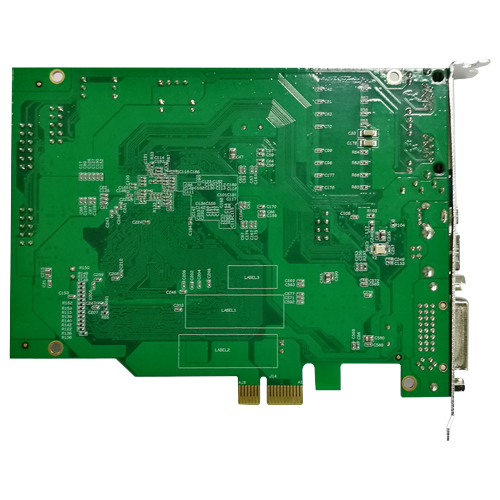

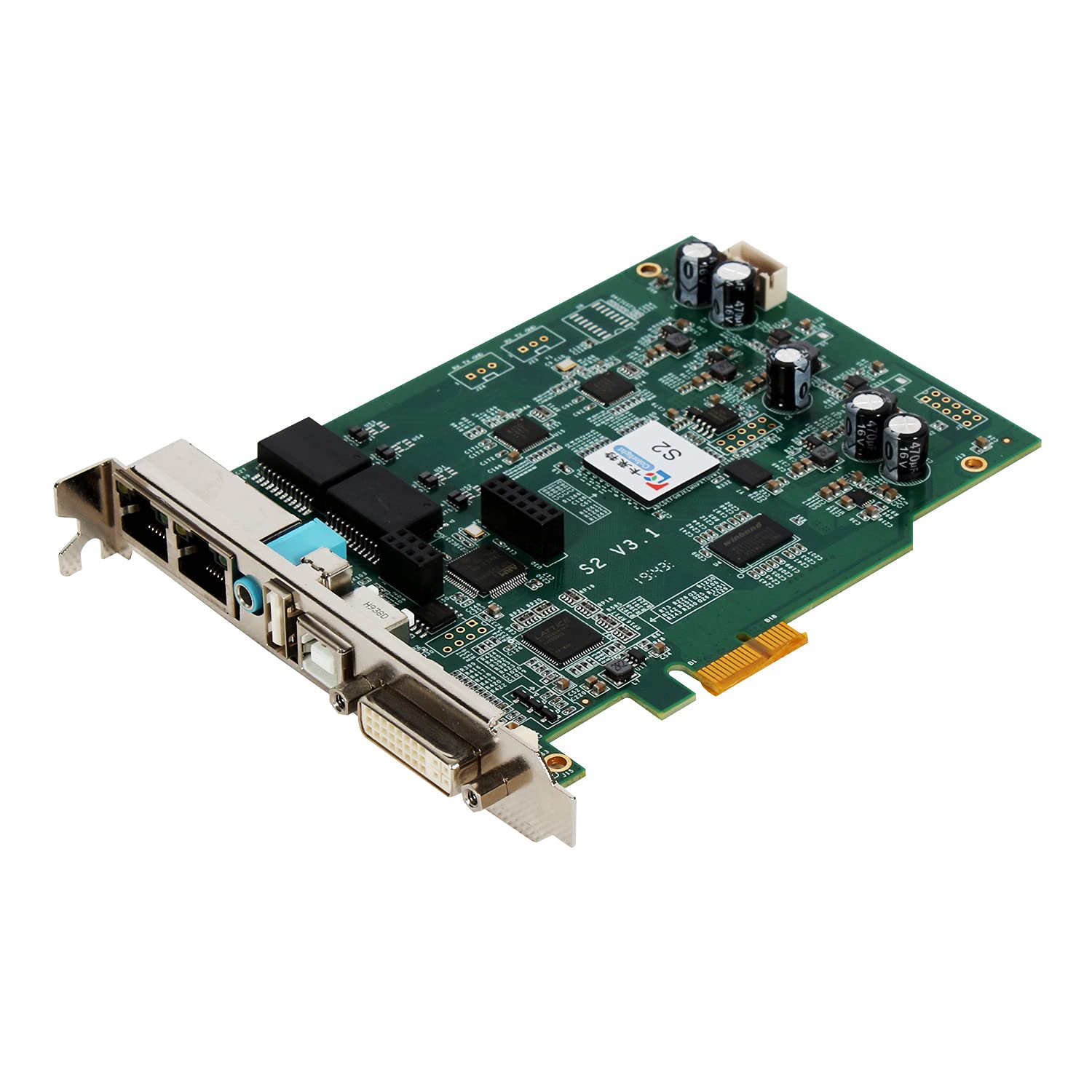

S2 Send card Send card is a new generation designed in 2016, upgrading product chipset, overall performance significantly improved. S2 uses two USB2.0 interface as the communication interface, convenient and reliable communications and high-speed multi-card cascaded PC and send cards. S2 uses PCI-E 1X interface and more versatile.
Technical Specifications:
- DVI signal input port
- Audio input port with synchronous transmission via Ethernet cable
- Maximum input resolution: 1920*1200 pixels.
- Loading capacity: 1.31 million pixels Maximum Width: 2560 pixels, Maximum Height: 2560 pixels.
- 2 Gigabit Ethernet port outputs support screen arbitrary splicing
- Dual USB ports for high-speed configuration and easy cascading
- Improved grayscale performance at low brightness
- Equipped with 1X PCI-E interface for increased versatility
- Wide working voltage with DC 3.8~12V
- Compatible with all series of Colorlight receiving cards
